Wire Forming Service

Wire Forming Service

The arbitrary 3D space bending and forming of round material with metal cross-section is
the special field of Caelong Hardware, KC has more than 20 years of experience in manufacturing such products.

Three-dimensional wire forms from Ø0.10 mm to Ø12.0 mm, bent in one pass on 15 CNC formers — low tooling cost and fast sampling.

Cailong has 56 years of experience and 650 machines

IATF 16949:2016 · ISO 9001:2015 · ISO 14001:2015 · ISO 13485:2016 · BSCI

Wire 0.10–12.00 mm · Bend angle ±1° · Form length up to 1,200 mm · 15 CNC formers

Materials, tolerances & design rules (expand)

Custom wire forming for complex assemblies

KC1970 manufactures three-dimensional wire forms from Ø0.10 mm to Ø12.0 mm wire on 15 CNC formers. We make custom hooks, loops, springs, retainers, clips and multi-bend forms to drawing, with bending, calibration and anti-rust treatment handled in-house. The process is suited to prototypes and small batches as well as repeat production because many forms require little or no production tooling.

Wire form applications

  • Automotive seat, latch, door-lock and mechanism components.
  • Home-appliance and cleaning-robot retainers.
  • Medical and equipment framing or spring components.
  • Electronics, communications and industrial assembly clips.

Wire range and forming

We review wire diameter, material, bend radius, leg length, angle, cut length and the sequence in which the wire must be formed. Length and angle targets can be agreed on the drawing, including ±0.02 mm where the process and geometry support it. Tight targets should be applied to functional features rather than every dimension without a functional need.

Materials and finishes

Carbon spring wire, stainless spring wire and other specified ferrous or non-ferrous wires can be reviewed against the application. Surface condition, corrosion exposure and the finishing process affect formability and service life. Anti-rust treatment, plating or other finishing requirements can be coordinated, with appearance and acceptance criteria agreed before production.

Prototype and production

A sample can confirm bend sequence, orientation and fit before a larger order. CNC formers can make design iterations practical without a large dedicated die. When the part is released, the approved wire, forming sequence, calibrations and inspection points are retained for repeat orders. Low-tooling production is useful for lower volumes and evolving designs.

Inspection and documentation

Inspection may include wire diameter, cut length, bend positions, angles, flatness, free shape and visual condition. Functional checks can be added where the drawing defines a force, fit or assembly requirement. Our quality system covers ISO 9001, IATF 16949, ISO 13485, ISO 14001 and BSCI; project-specific reports can be agreed.

DFM review

Send a 3D model or dimensioned drawing showing the intended orientation and assembly position. We review bend radii, wire access, clamp positions, spring-back and whether the form can be held during calibration. A small adjustment to bend sequence or leg length may improve repeatability without changing the assembly.

Request a wire-form quotation

Email your drawing or STEP file to sales000@kc1970.com. Include material, wire diameter, quantity, tolerance, finish and delivery destination. Our engineers will confirm the manufacturing route and any drawings or samples needed for a quotation.

Surface protection and packaging

Wire forms can tangle or distort if packed without support, particularly when the part has long legs or multiple planes. Packaging and bundle limits can be agreed to protect geometry during transport. Where corrosion is a concern, the finish and protection requirement should be defined with a practical corrosion test or acceptance method. We review the part shape, finish and handling route before export packaging is approved.

Production controls

For repeat wire forms, the approved wire, forming sequence, bend positions and calibration checks are retained as the controlled specification. Wear or adjustment of forming tools can be monitored through critical dimensions and visual checks. If a design change is required, the first article and assembly fit should be reapproved before it enters ongoing production.

Types of Wire Forming Service

FAQs Of Wire Forming Service

  • Q What are the general materials for wire forming products?

    A

    Low carbon steel wire, medium carbon steel wire or stainless steel wire is generally used.

  • Q Do wire formed products require heat treatment?

    A

    Mild steel wire material is generally not required for the product.

  • Q What materials should be used for car seat wires?

    A

    It is recommended that SWB material will have some load-bearing capacity.

  • Q How much tolerance can be guaranteed for the angle of the wire formed product?

    A

    The accuracy of normal equipment can be controlled within 1 degree.

  • Q How to ensure product consistency with multi-angle wire molding products.

    A

    Usually a full inspection with inspection tools to improve inspection efficiency and pass rate.

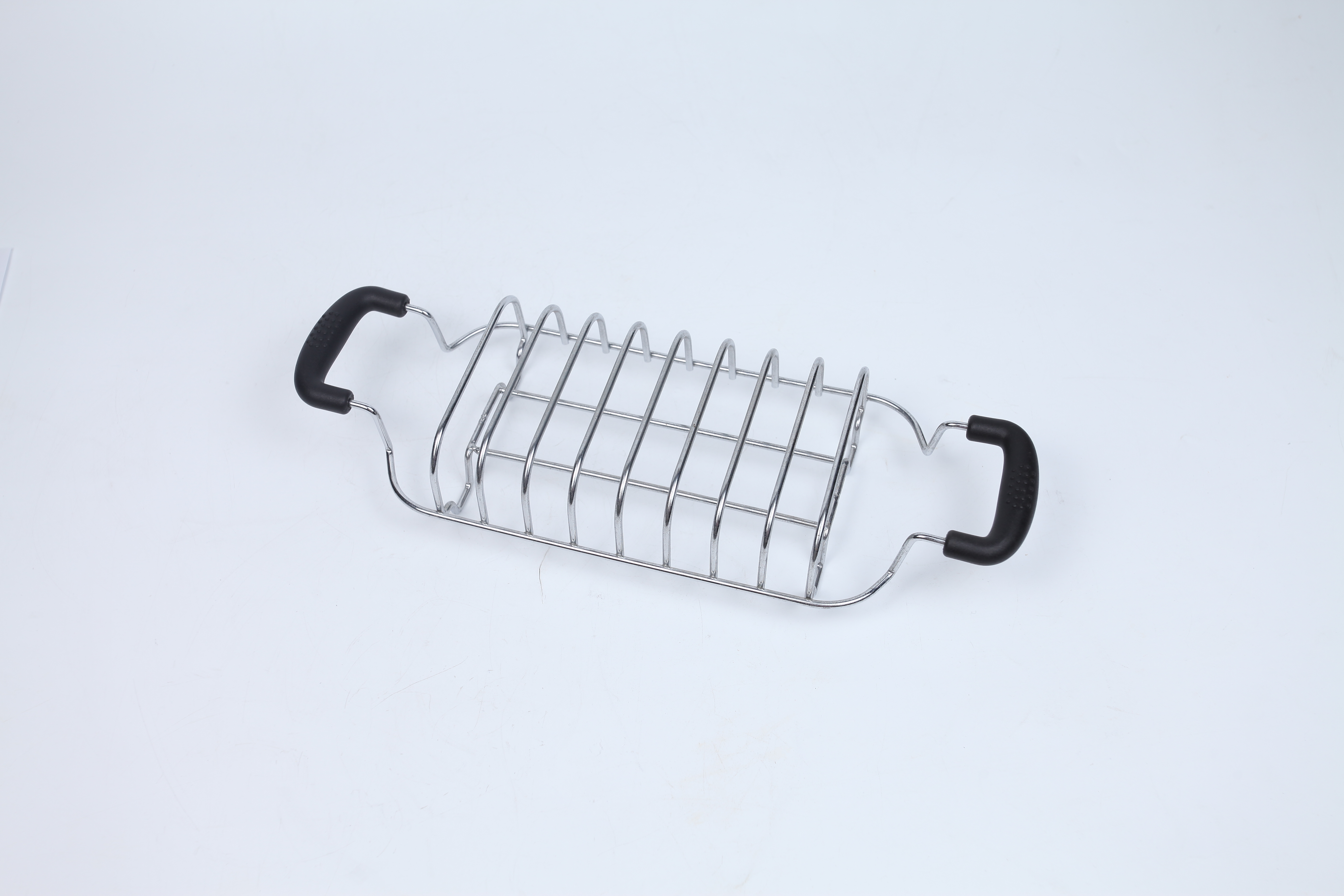

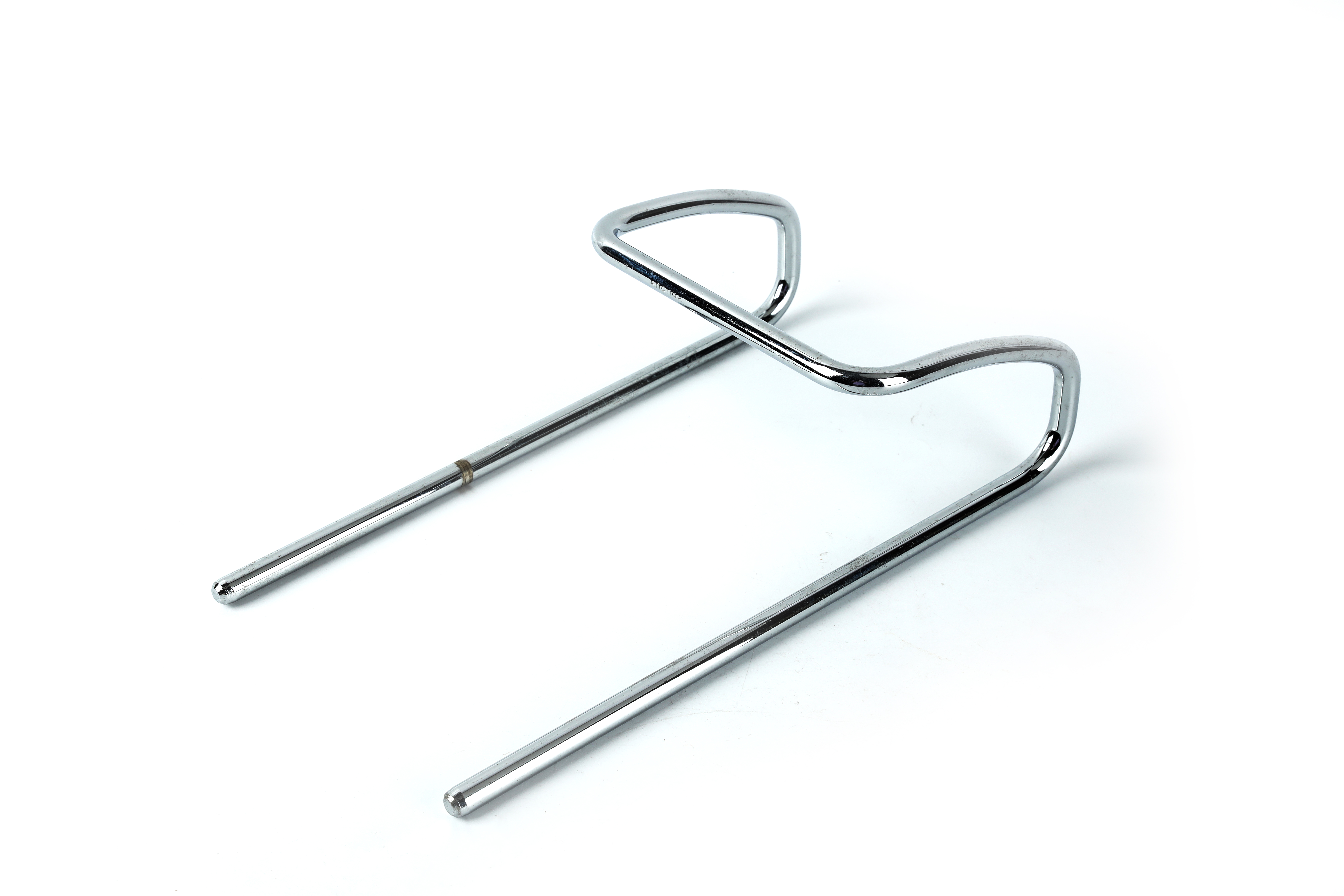

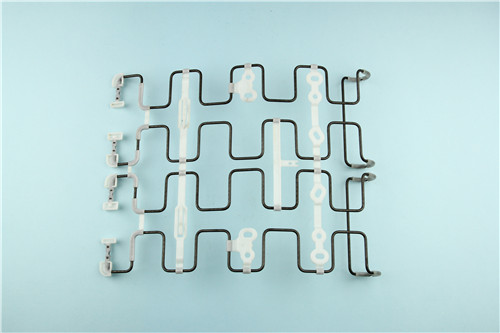

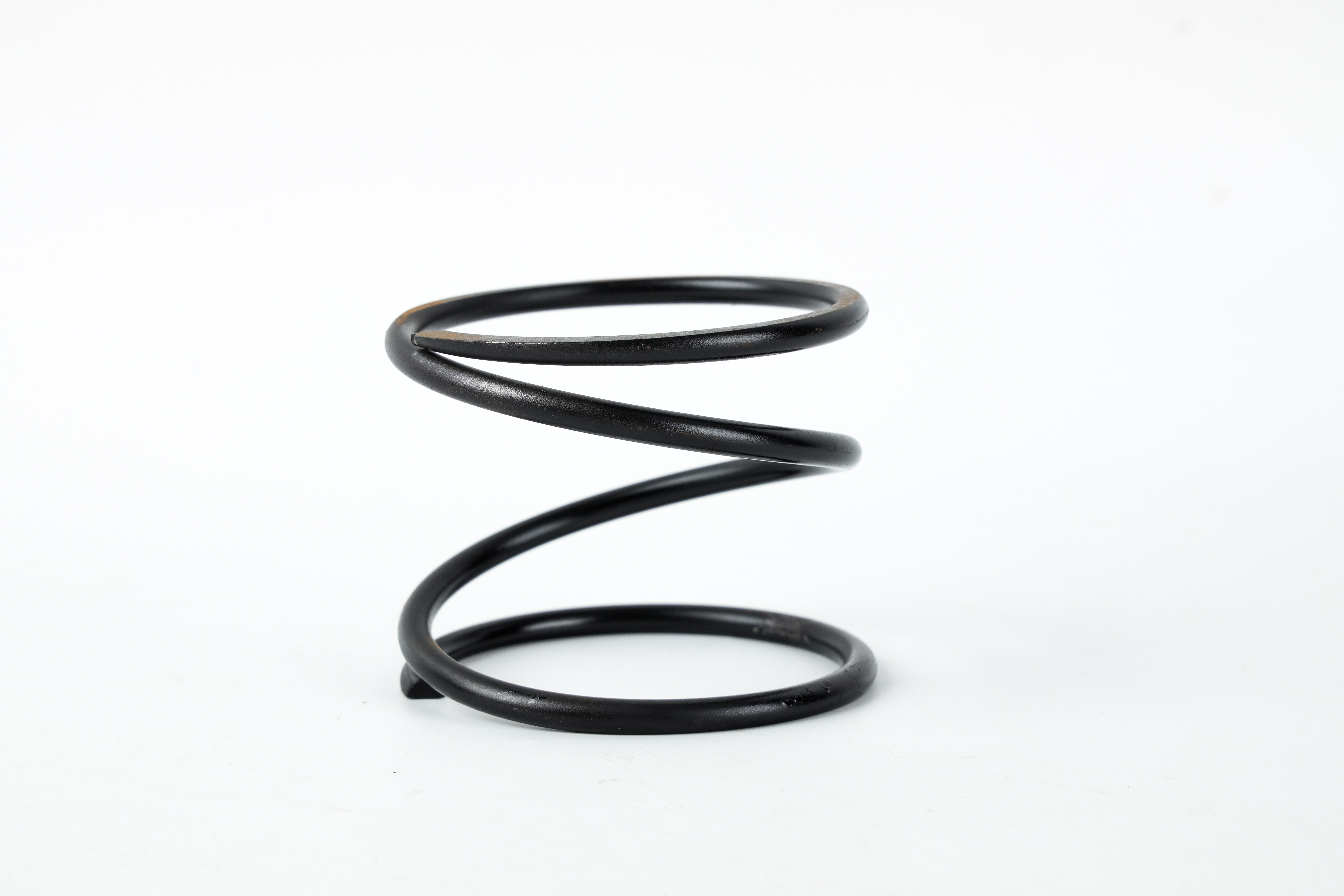

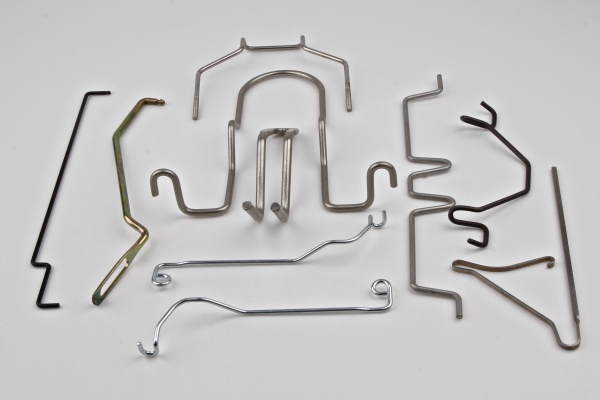

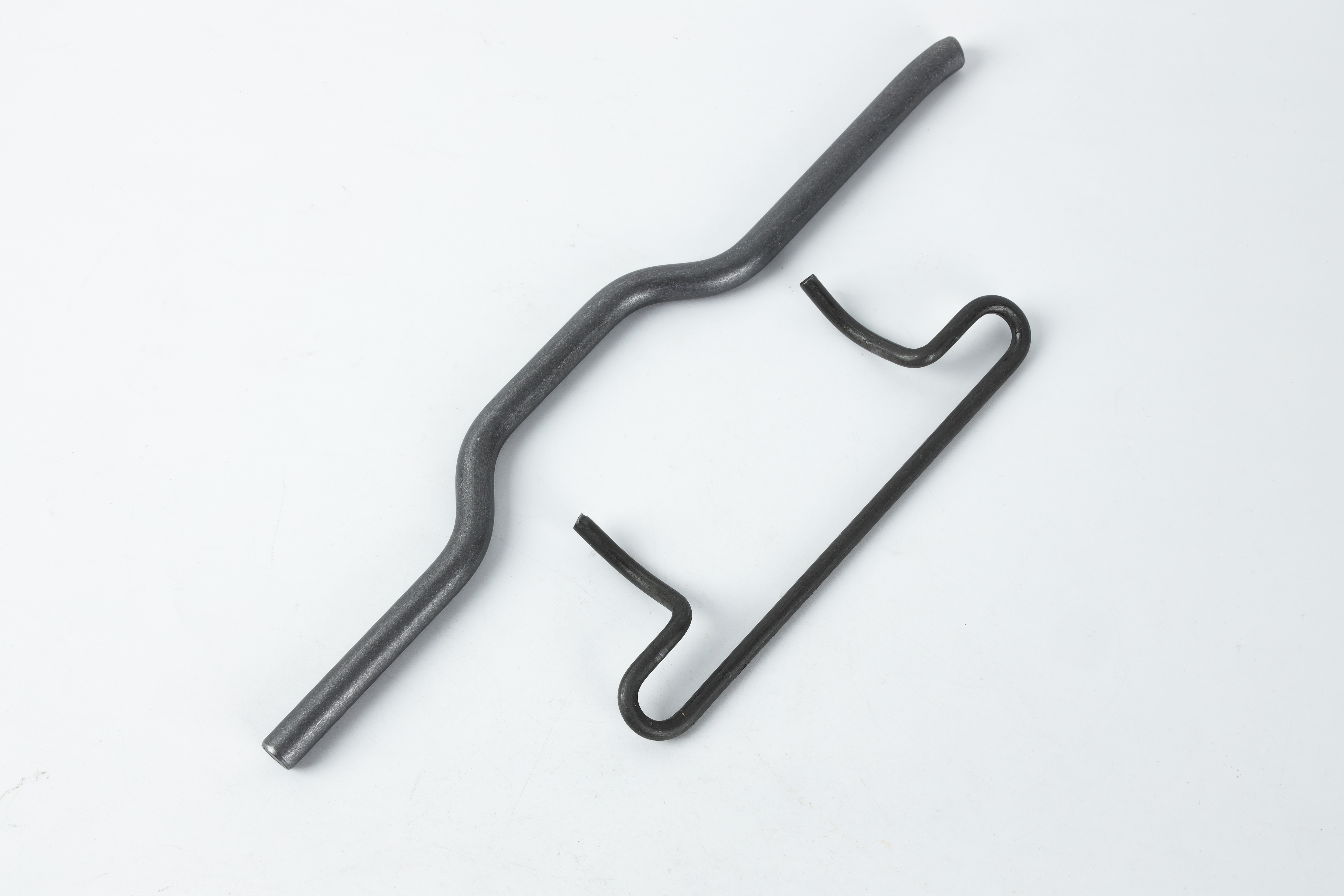

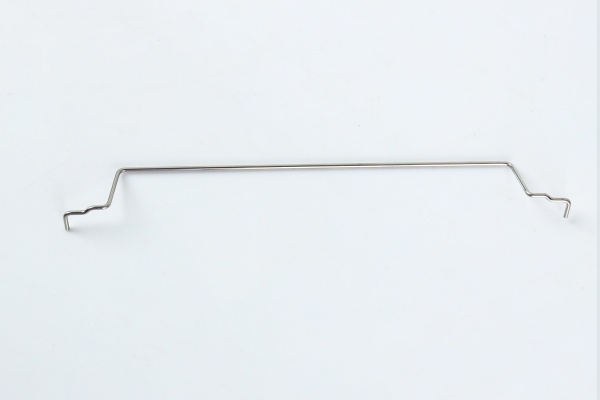

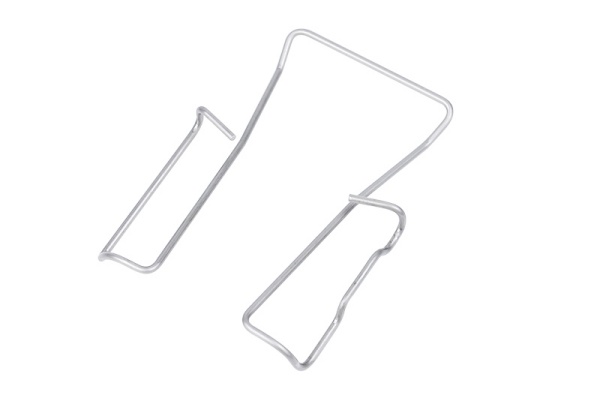

Types of Wire Forming Service

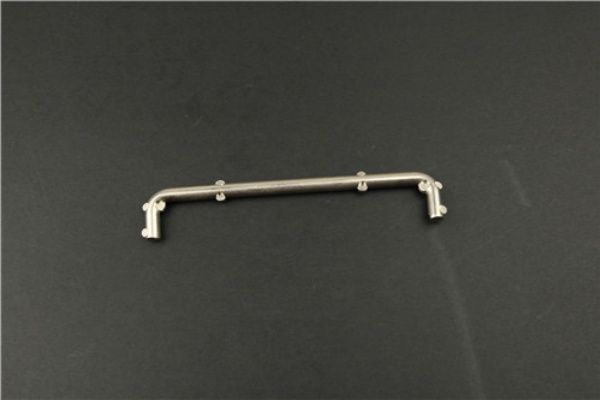

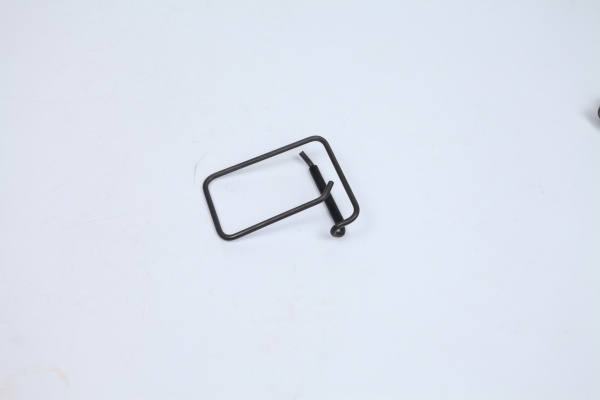

Wire Forming

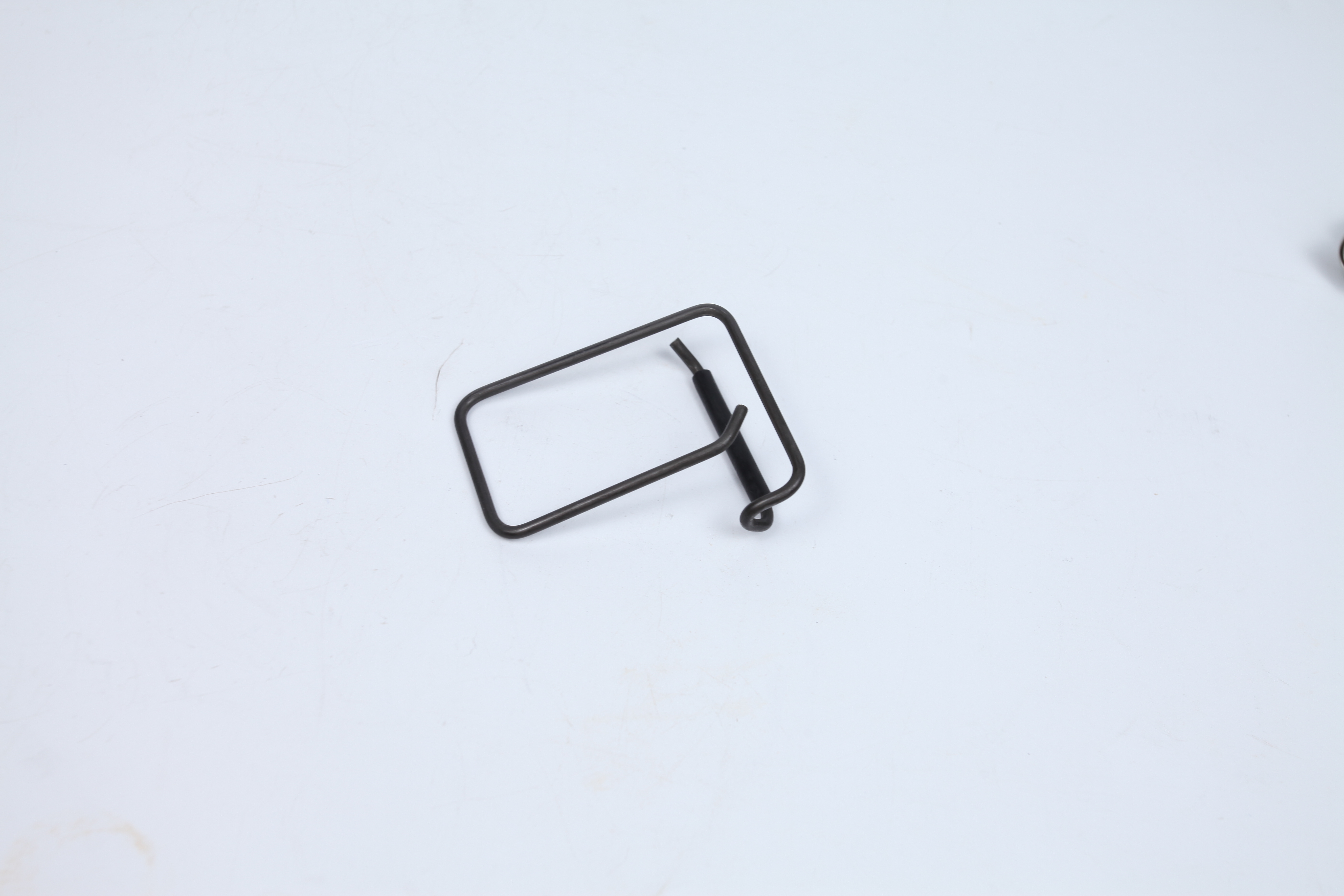

Wire Forming

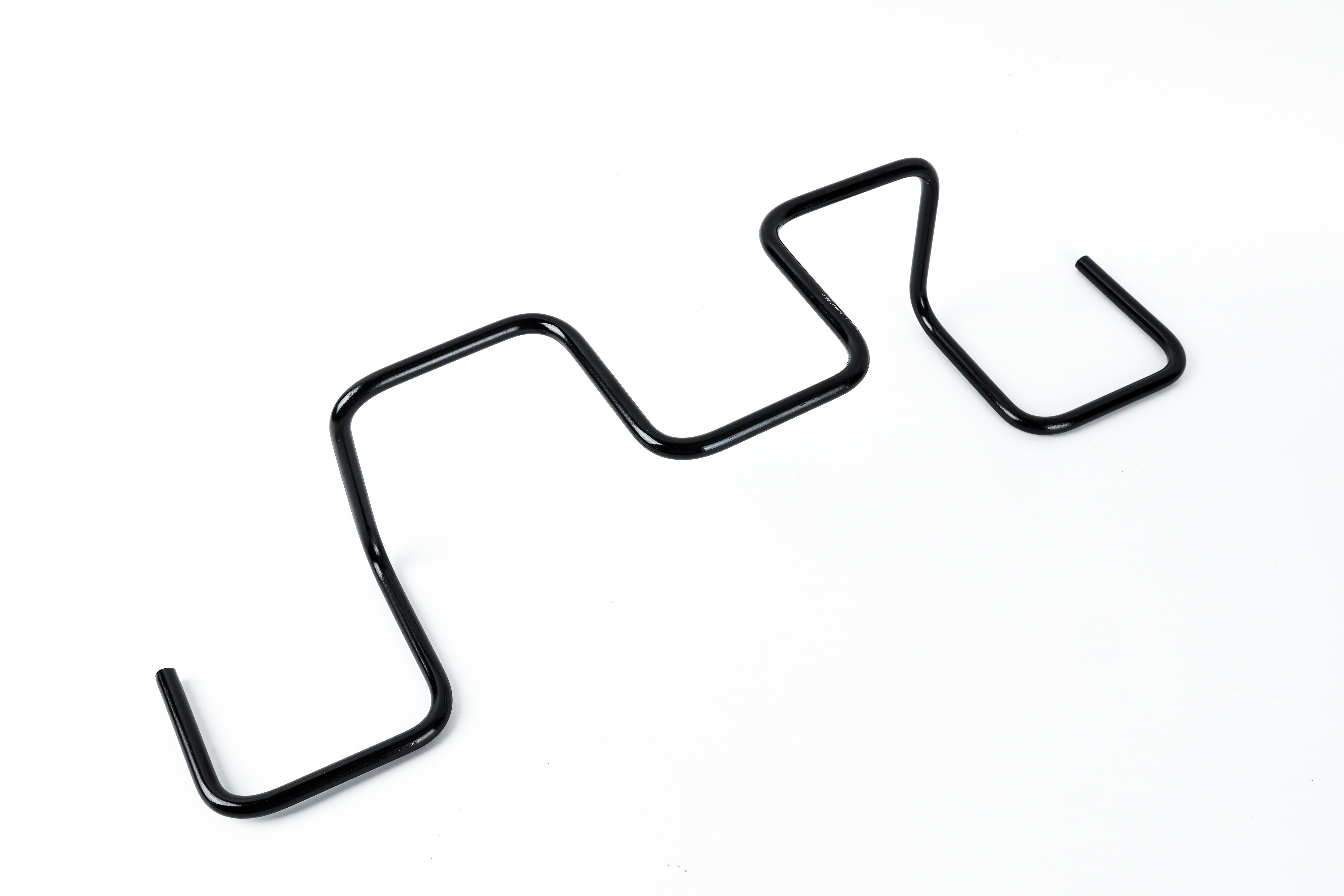

Wire Forming

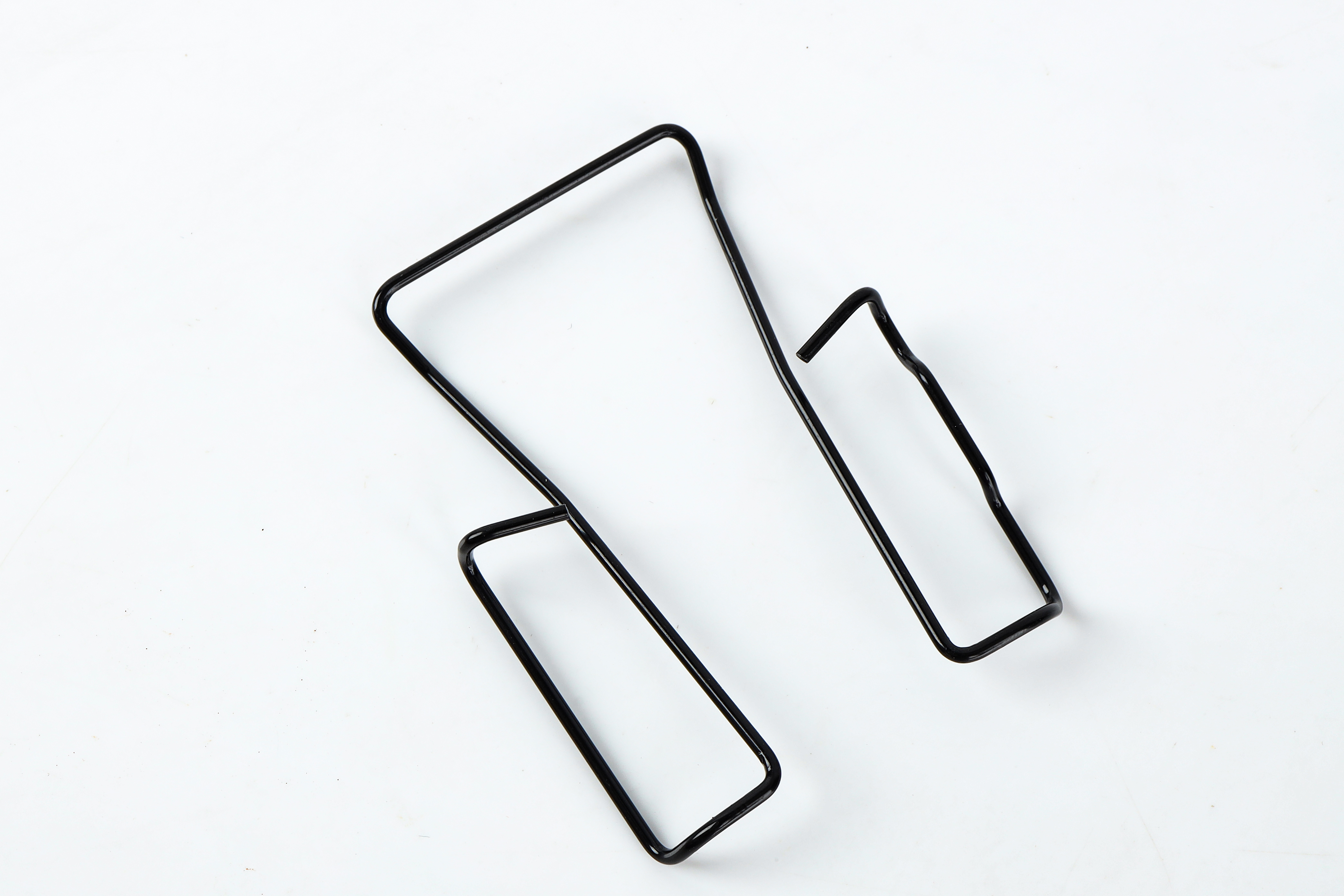

Wire Forming

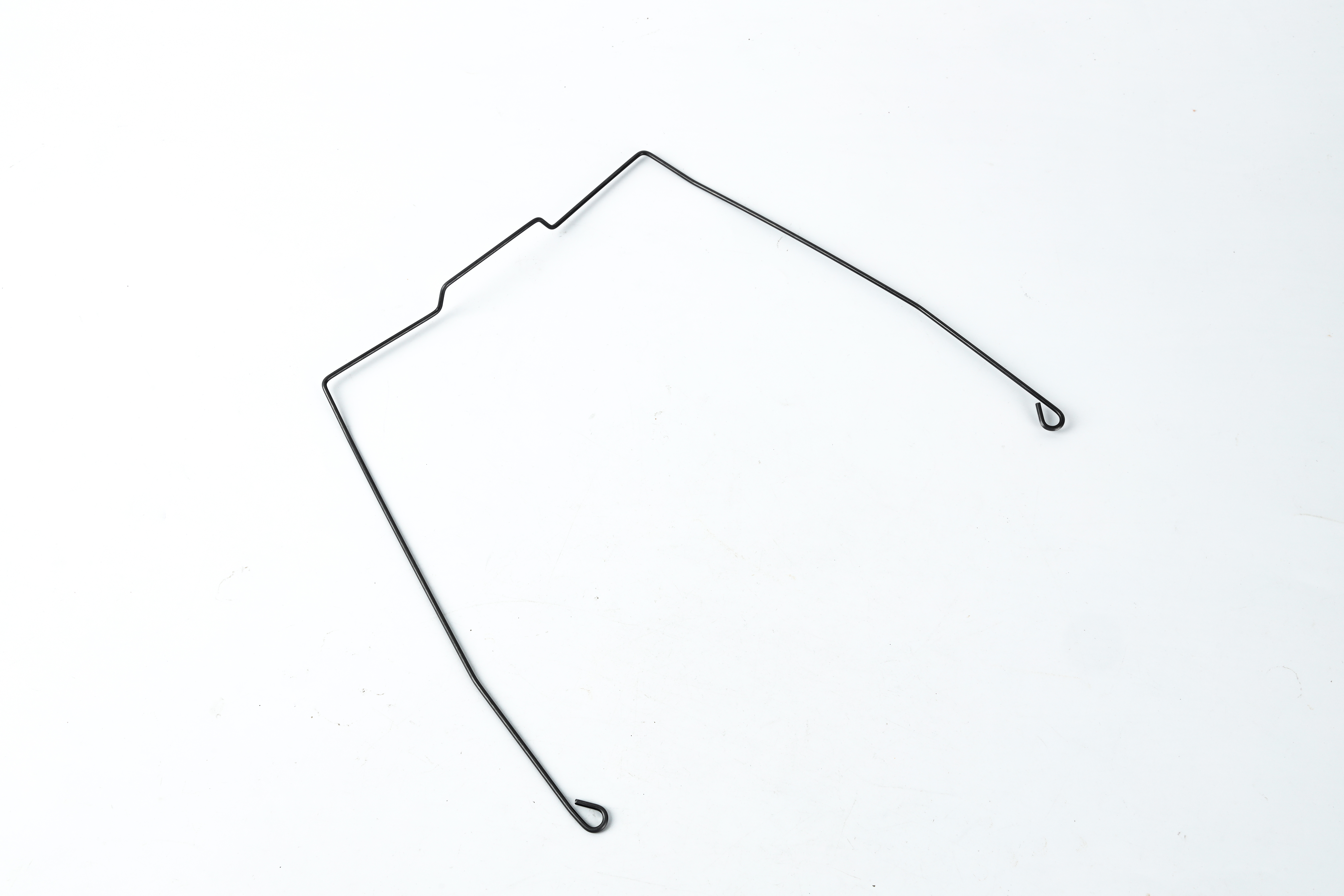

Wire Forming

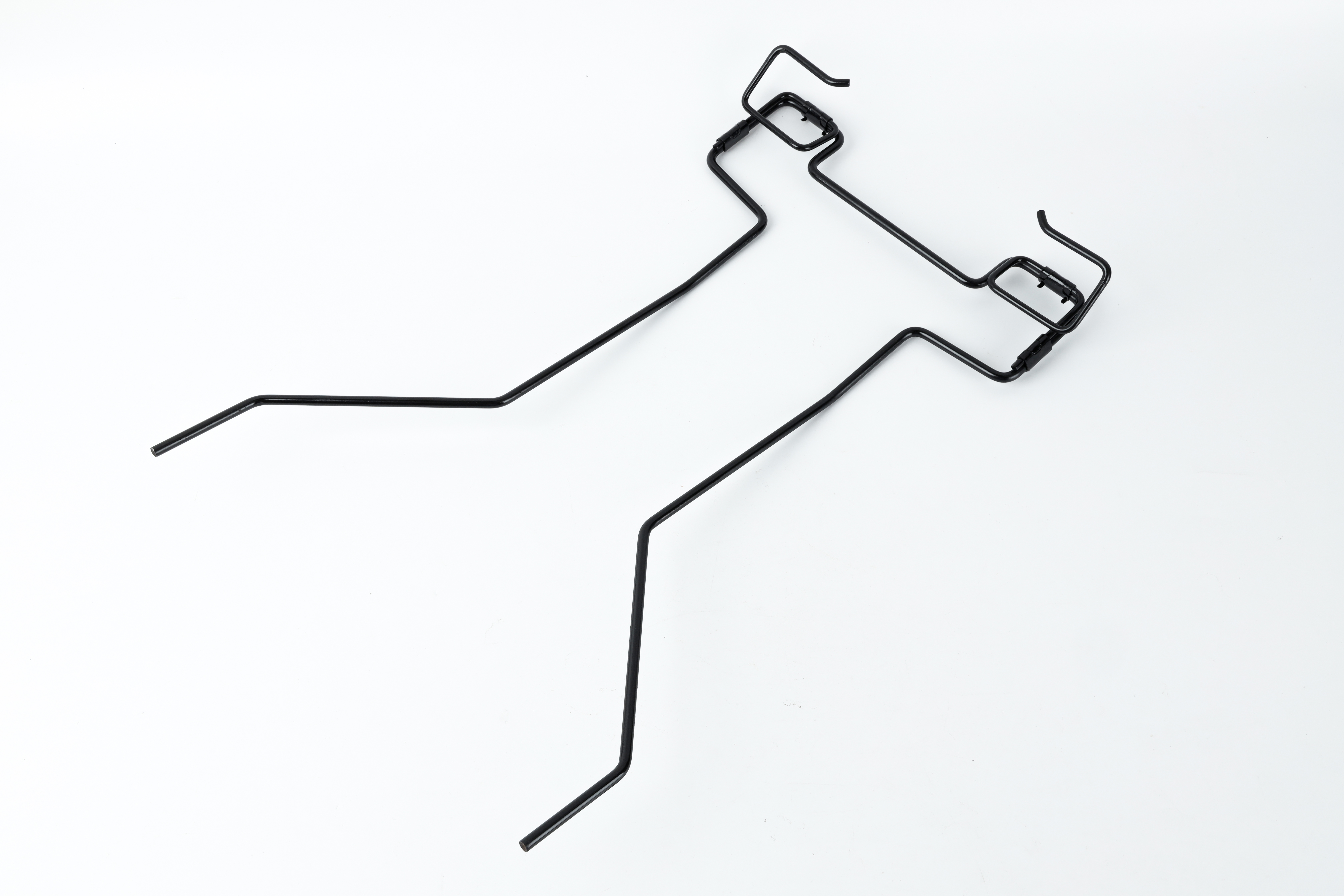

Wire Forming

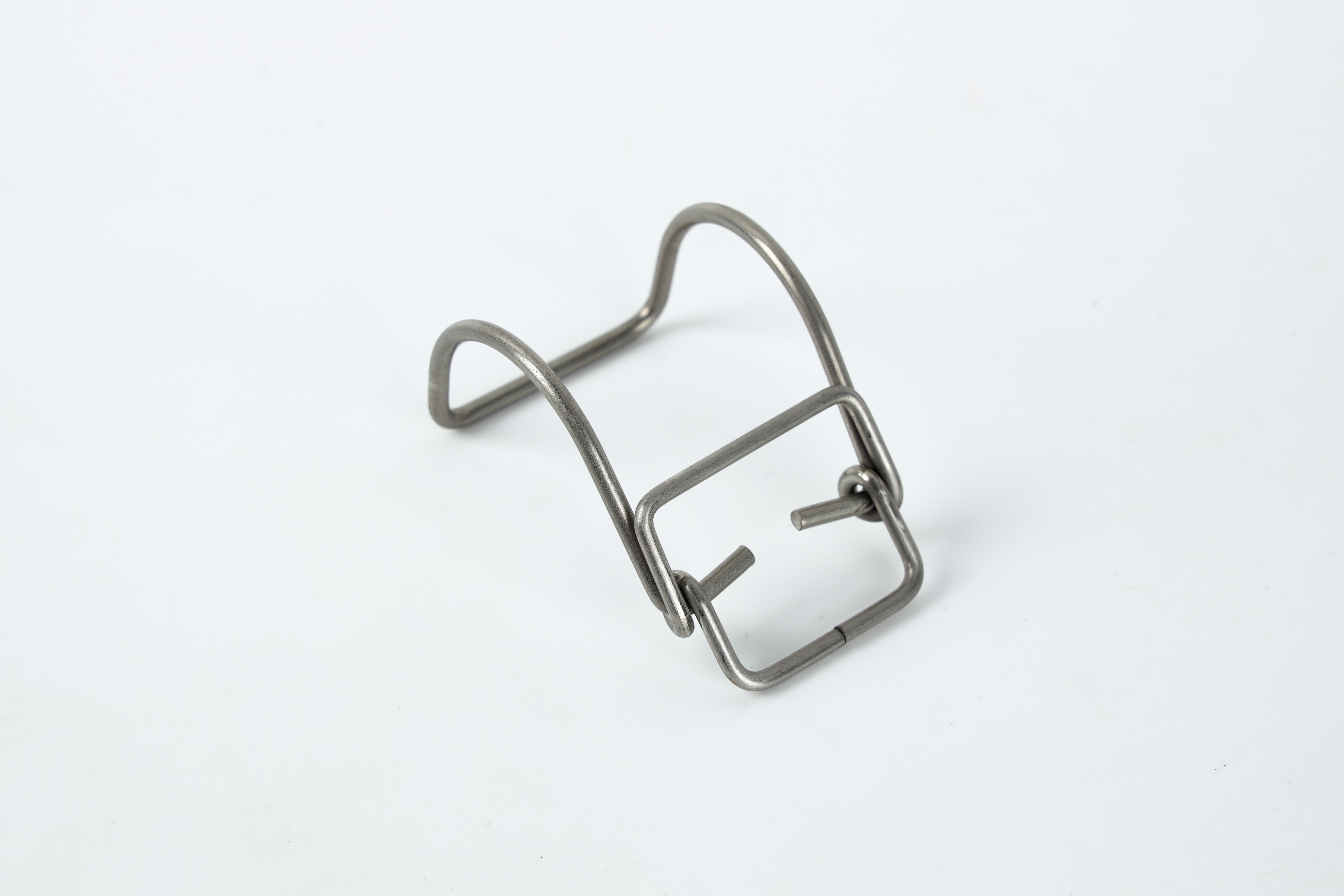

Wire Forming

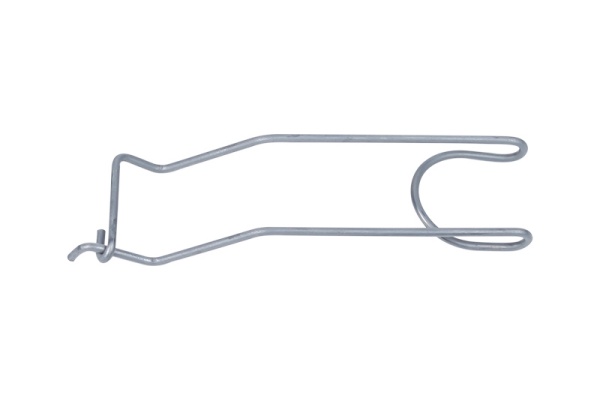

Wire Forming
